Intermittent Forming, Filling And Sealing Of Blisters for Inhalation Products: MSP

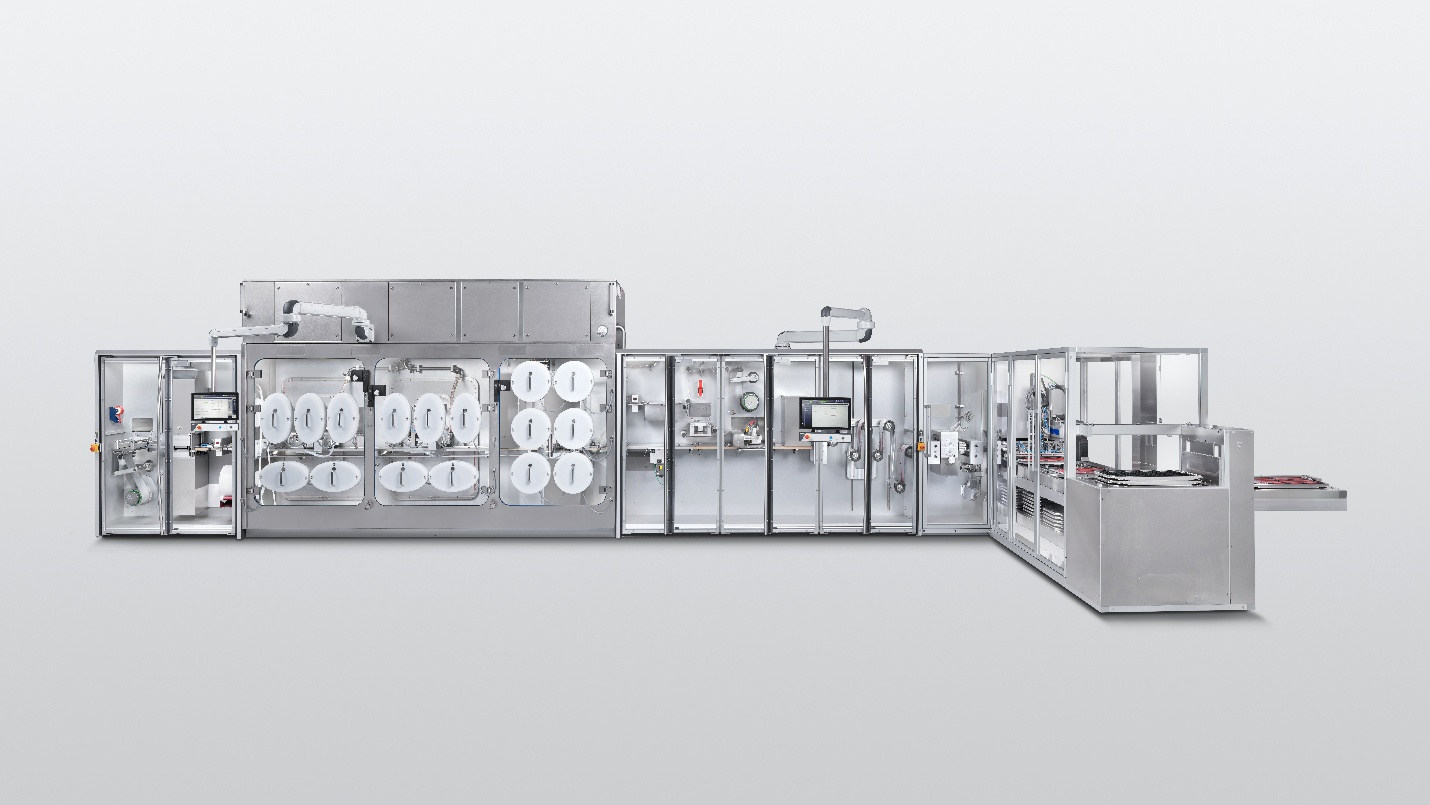

The MSP is an intermittent machine for the commercial production of inhalation blister strips. It forms, fills, and seals blisters with outputs of up to 2,400 cavities per minute. A multi-lane filling module micro-doses the powder with the utmost precision, using either drum-filling or membrane-filling technologies.

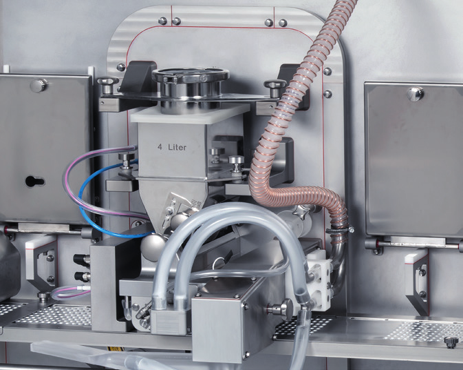

Drum dosing unit for partial filling of blister cavities

Key Features And Processes

• Unwinding of aluminum foil
• Forming of cavities
• Filling (membrane or drum)
• Heat sealing
• Cutting into single or double blister strips
• Rewinding of continuous blister or unloading of single blister strips

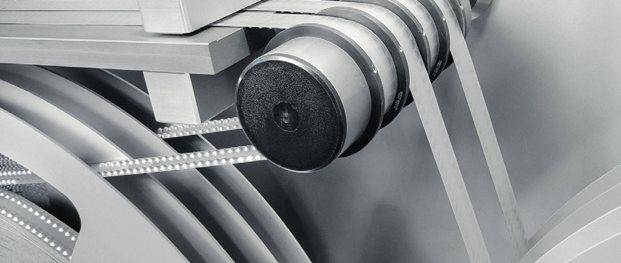

Rewinding of continuous blister web into double strips

The Harro Advantage

• Balcony-type design with separate production area for convenient accessibility and maintenance
• Choice of drum or membrane filling technology depending on application
• Automated production concept with consistent quality verification
• Optional containment system for safe processing of highly potent APIs
• Compact machine design with small installation footprint
• Dimensions customizable to fit specifications

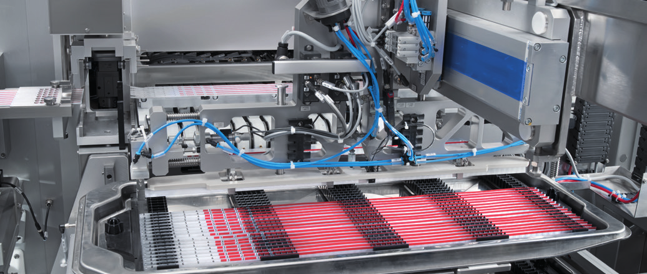

Unloading of single blisters into trays

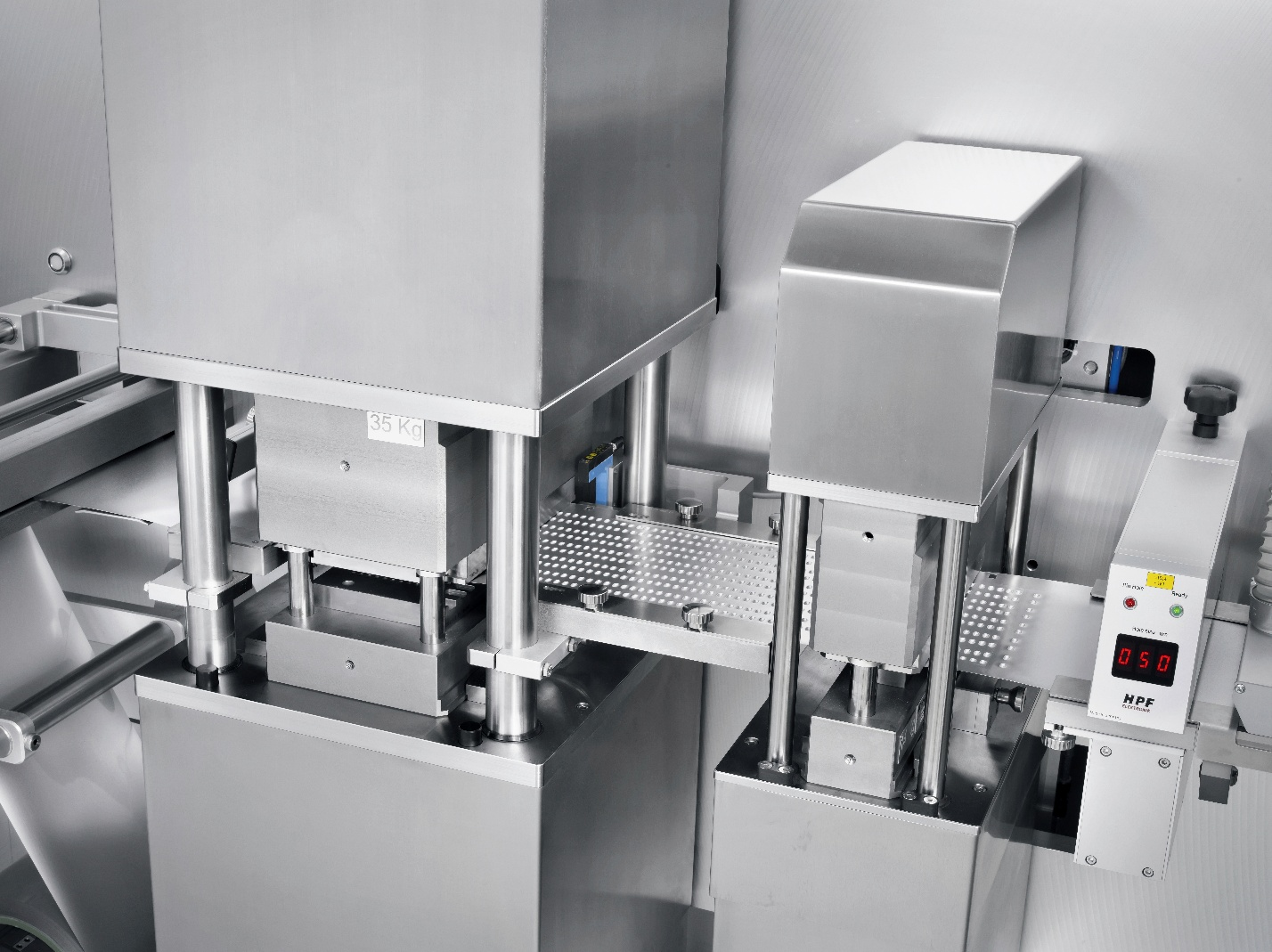

The lid foil is firmly sealed with the blister web

Technical data available upon request. Reach out today to tell us about your pharmaceutical or medical device project. We would be happy to learn more about your endeavors in the field.

Patented technology.

All data in this sheet is non-binding and subject to change.
