Offering over 175 years of experience in designing and building process equipment, Ross is uniquely equipped to accept a wide range of custom fabrication projects – from simple jacketed vessels and agitated tanks to pressurized reactors and large tank farms.

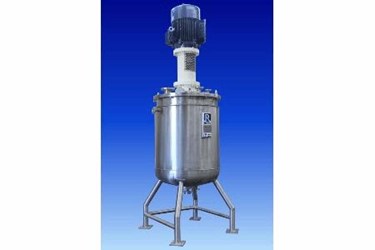

Pictured is a 300-gallon vessel designed for 5 psi internal pressure at 300oF. Product wetted surfaces are stainless steel type 304L polished to 240-grit finish. The vessel is agitated by a special disperser blade driven to 1,150 rpm by a 75HP explosion-proof motor. The agitator shaft utilizes a mechanical seal running in an oil bath. A 50-psig ASME Code-stamped baffled jacket surrounds the sides and vessel bottom for heating/cooling. All elastomers, nozzles, sensors, dip tubes, valves and operator controls are supplied based on the end user’s specific requirements.
Ross also builds sanitary tanks and storage vessels almost any use, application or environment.
