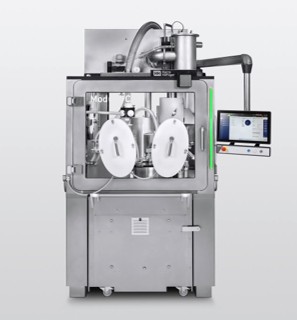

Maximum Protection, Superior Quality: Modu-C CS Containment

The Modu-C CS Containment platform offers the same capabilities as our Modu-C CS, but with containment parameters that ensure optimal operator and product protection against highly active substances.

Containment concepts of up to OEB 5 can be achieved on the Modu-C CS Containment platform. Functions like the integrated deduster and cleaning by WIP (Wet-in-Place) enable safe working, optimal handling, and reduced space requirements. The 100% weighing in closed containment is revolutionary and ensures that each finished capsule is exactly the correct weight. Like the rest of its line, the Modu-C CS Containment also features in-process control (IPC) and provides optimal flexibility with its interchangeable dosing systems. For the handling of moisture- or oxygen-sensitive products, the production area can be configured with the proper environmental conditions (e.g. nitrogen environment).

Key Features And Processes

• Output: 43,500 capsules per hour
• Configurable up to OEB 5
• 100% inline gross weighing
• Integrated capsule deduster
• Integrated in process control (IPC)
• Safe cleaning with Wet-in-Place (WIP)
• PAT systems (Process Analytical Technology)
• Humidity and temperature control in the containment version
• Nitrogen product protection
• Capsule sorting (also within containment)
• Feedback loop to dosing system
• Line specific weighing; trackable in real time
• Viable and faulty products ejected separately

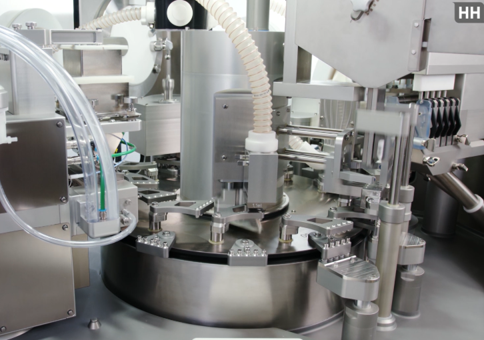

Interior CS Containment – Special technology enables safe cleaning

Harro’s Trolley Concept: Rapid Interchange of Dosing Systems

Different dosing methods are used depending on the powder properties and the type of filling medium. The dosing systems are mounted on trolleys to allow for quick and easy exchanges.

Up to three different dosing stations can be installed on a single trolley. This makes it possible to combine several media in one capsule. The trolley system increases machine uptime by keeping maintenance, sanitization and setup separate from the basic machine.

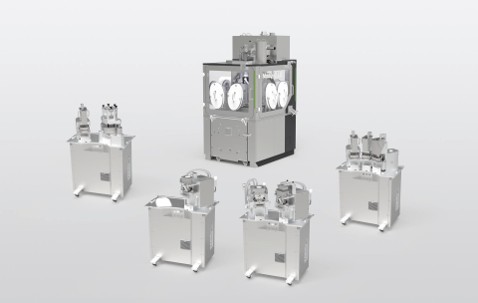

Modu-C CS Containment with trolley dosing system

The Harro Advantage

• Dosing a wide range of powders and other products
• Operator protection concepts for all capsule applications
• Accurate results with all powder blends, engineered particles, spray-dried powders, pure active ingredients, and more
• Rapid dosing system changeovers
• A range of different modular functions possible
• 100% gross weighing of each individual capsule
• Weighing accuracy +/– 0.1 mg
• Compact footprint with reduced downstream equipment
• Highly economical with product-saving processes

Technical data available upon request. Reach out today to tell us about your capsule filling project. We would be happy to learn more about your endeavors in the field.

Patented technology.

All data in this sheet is non-binding and subject to change.
