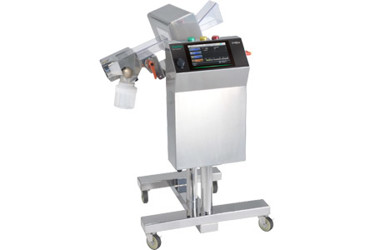

M6 Tablet Metal Detector
The M6 Tablet Metal Detector is equipped with a detection head and signal processing engineered for pharmaceutical applications. Furthermore, the structure is designed to minimize the negative effect on detection performance of static electricity of tablets and capsules, as well as vibration and inverter noise from nearby equipment. The result is a highly specialized machine that provides outstanding detection of metal contaminants with very few adjustments and almost no need to use sample products during configuration. The sensitivity of the Tablet Metal Detector can determine whether the contaminant is magnetic or non-magnetic without a time-consuming breaking test on tablets and capsules. A position sensor on the rejection unit prevents false rejects as well as defective products from slipping into downstream equipment.
Benefits
- Faster identification of magnetic vs. non-magnetic contaminants
- Built-in self-monitoring of detection performance
- Failsafe rejection system
- Complies with FDA requirements on electronic records
Features
- Simultaneous multifrequency
- Vibration-resistant
- Noise-resistant from peripheral devices
- Auto-setup wizard
- 200 product resets
- FDA 21 CFR part 11 supporting (optional)
- Immediate inspection without product setup
Sanitary features
- Tool-free part removal
- Easy-clean design
Specifications
- Opening inner diameter: 100 mm x 40 mm
- Chute inner diameter: 86 mm x 32 mm
- Dimensions: 626 mm W x 550 mm D x 660 mm-1090 mm H
- Belt width (IP30): ---
- Belt width (IP66): ---
- Max belt speed: 1,800,000 capsules/h (30,000 capsules/min)
- IP rating: IP65
