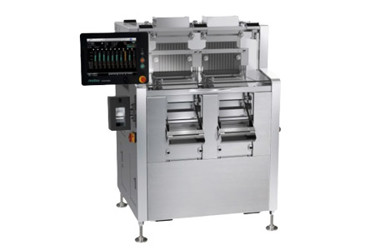

Pharmaceutical Checkweigher For A Variety Of Capsules
Anritsu's Capsule Pharmaceutical Checkweigher is the best weighing solution for a variety of capsules, where slight variances in active pharmaceutical ingredients can have a large impact on efficacy. It's equipped with Anritsu's force balance load cell that provides weight accuracy of +/- 0.5 mg. Each capsule is individually weighed, monitored, and tracked. The handling system is designed to minimize static electricity and vibration generated from the drop of the capsule from the magazine to the weigh cell. The rejection mechanism includes three gates and a confirmation sensor to make sure that capsules with incorrect weight are removed from the production flow. Our capsule checkweighers are available in three models with 10, 20, or 30 lanes, and a maximum inspection capacity of 230,000 capsules/h.
Benefits
- Ensures correct dosage of drugs
- Simplifies operations
- Complies with FDA's 21 CFR Part 11 for electronic record keeping
- Supports production and R&D efforts
Features
- Auto-wizard product setup
- Highest measurement accuracy of +/- 0.5 mg
- Fail-safe mechanisms
- Automatic sensitivity confirmation
- 10-30 lanes
- FDA 21 CFR Part 11 optional
Sanitary features
- Tool-free part exchange
- Clean design with easy access
Specifications
- Max throughput (10 lanes): 75,000 capsules/h
- Max throughput (20 lanes): 150,000 capsules/h
- Max throughput (30 lanes): 230,000 capsules/h
- Scale interval: 0.1 mg
- Dimensions: 1740 mm H x 866 mm W x 639-1296 mm L (varies by lane amounts)
- Weigh range: 2-2000 mg
- IP rating: IP30, IP50 for weigh cell
