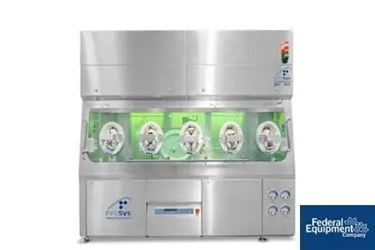

Used Prosys Pharmaceutical Aseptic Isolator: Single Chamber Closed-Barrier System
ProSys S06428 Containment and Sampling Technology is a single-chamber closed-barrier system providing protection from cross-contamination between a process and the surrounding laboratory. The Isolator is rated ISO5. (International Standards Organization) (for particle count) environment in operation. An integration with a bio-decontamination system allows parametric surface bio-decontamination and their ventilation systems, prior and after processes.
The isolator suite system consists of one chamber with a central H2O2 (Hydrogen peroxide) vapor generator. A MUA (Make Up Air) ventilation system ensures controlled pressure vs. the surrounding room, as well as constant fresh-air renewal. The incoming air is supplied from the surrounding room and extracted back to the room. A central PLC (Programmable Logic Controller) based control system controls the isolator, with HMI (Human Machine Interface) centralizing all commands and monitoring data. A central H2O2 vapor generator will sit on a skid. Pipe work will directly connect the generated H2O2 vapor from the generator to the isolator. After the bio-decontamination cycle H2O2 vapor is directed to the room via a catalytic converter. The isolator also has its own High H2O2 monitoring sensor. The Isolator is supplied with a glove test kit in order to detect glove leaks. The entire isolator is cleanable, with minimum crevices/ledges, and composed of non-shedding materials. Heraeus Multifuge X3 Centrifuge, SN S06428.
SKU: 4612-1
Manufacturer: Prosys Fill
Location: Cleveland, OH
Specifications
- Material of Construction: Stainless Steel
- Serial Number: S06428
