8 Sq Meter Rosenmund Filter Dryer, 304L S/S, 50/150#

4532-25-01

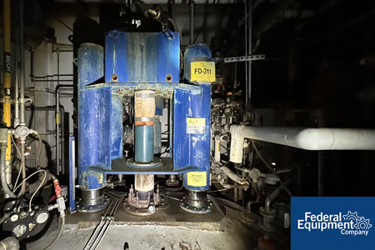

Used 8 sq meter Rosenmund filter dryer, 304L stainless steel construction, rated 50 psi and full vacuum internal at 350 f, jacketed for 150 psi and full vacuum at 350 f, cored 3 wing agitator with rotary union driven by 40 hp motor drive, 460 volt, side discharge with plug valve, includes APOVAC vacuum recovery system, model APOVAC 3817, with Sulzer Burckhardt vacuum pump, condensor and receiver tank, hydraulic power pack, Filter certified by Paul Mueller Co, serial# 170084, national board# 25763, Rosenmund serial# RSD8-886-96, built 1996.

Request Information

SKU: 4532-25

Manufacturer: Rosenmund
Condition: Used
Location: Michigan

Specifications

  • Agitated: True
  • Capacity (Sq Meters): 8
  • Cored Agitator: True
  • Discharge Type: Side
  • Drawings: True
  • Internal Pressure (PSI): 50
  • Internal Temperature (F): 350
  • Jacket Pressure: 150
  • Jacket Temperature: 350
  • Material of Construction: Stainless Steel
  • Model: RSD8
  • Motor: #hp: 40
  • National Board: True
  • Seal Type: Packing Gland
  • Stainless Steel Grades: 304L
  • Vacuum Rated: True
  • Voltage: 460
  • Serial Number: RSD8-886-96
  • Year of Construction: 1996
