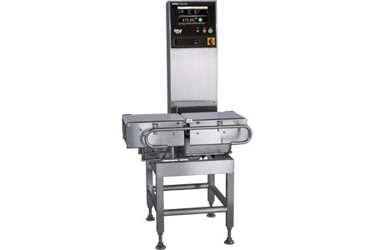

SSV Checkweigher For Pharmaceutical, Nutraceutical, Food, And Packaged Products Inspection
The SSV-h Checkweigher is a great cost-effective solution for industrial, pharmaceutical, and packaged food products that need to meet stringent accuracy and reliability standards. It is equipped with a force balance load cell that produces faster response and readings with maximum accuracy of +/- 0.01 g. The Smart Measurement Function uses improved signal processing, filtering, and scale resolution to reduce rejections due to double product errors. The giveaway feature calculates product excess both as total weight and percentage, allowing you to adjust filling levels and reduce costs. The SSV-h series comes with an IP30 dustproof rating that makes it ideal for non-washdown applications. Its lightweight and rigid conveyor can be easily disassembled and wiped clean without any tools.
Benefits
- Reduction of product giveaway generates ROI from the first day of usage
- Excellent combination of cost-effectiveness, accuracy, and ease of use
- Open sanitary design and quick disassembly for easy cleaning
- Checks up to 600 products per minute
Features
- Small footprint
- Auto-wizard product setup
- Smart Measurement Function for improved OEE
- Temperature compensation
- Anritsu proprietary weigh cell design
- High-accuracy force balance
Sanitary features
- Tool-free belt removal
- Clean design with easy access
Specifications
- Max product length: 450 mm
- Max product width: 350 mm
- Max product height: 450 mm
- Dimensions: 850 mm H x 565 mm W, Length varies
- Weigh range: 0.4-100 g
- Max belt speed: 15-120 m/min
- IP rating: IP30
