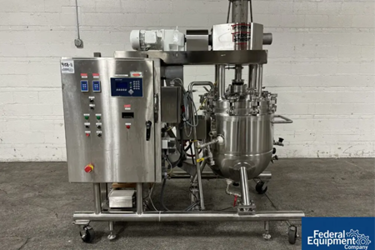

Used 125 Liter Lee Tri-Mixer Turbo Shear Triple Shaft Reactor

Used 125 liter Lee Tri Mix Turbo Shear triple shaft reactor, 316 stainless steel construction, model 125LD12T, 15 Ra electropolished internal finish, approximately 25" diameter x 5" straight side, hinged dish top, hemispherical bottom, rated 50 psi and full vacuum at 300 f internal, jacketed for 150 psi at 366 f, top entering double motion agitator with sidewall scrappers and inner opposing paddles driven by 5 hp motor drive, center top entering mixer emulsifier with direct coupled 7.5 hp motor, agitator system bridge mounted with hinged tilt, water actuated tilting cylinder, mounted on stainless steel unitized base with control panel with motor vfd controllers, serial# 81004-1, national board# 12861, built 2014.
SKU: 4158-11
Location: Cleveland, OH
Manufacturer: Lee Industries
- Straight Side (Inches): 5
- Agitated: Yes
- Capacity (Gallons): 33
- Diameter (Inches): 25
- Drawings: Yes
- Internal Pressure (PSI): 50
- Internal Temperature (°F): 300
- Jacket Pressure: 150
- Jacket Temperature (°F): 366
- Jacketed: Yes
- Manuals: Yes
- Material of Construction: Stainless Steel
- Model/Type: 125LD12T
- Motor HP: 7.5
- National Board: Yes
- National Board Number: 12861
- Serial Number: 81004-1
- Stainless Steel Grades: 316
- Vacuum Rated: Yes
- Year of Construction: 2014
